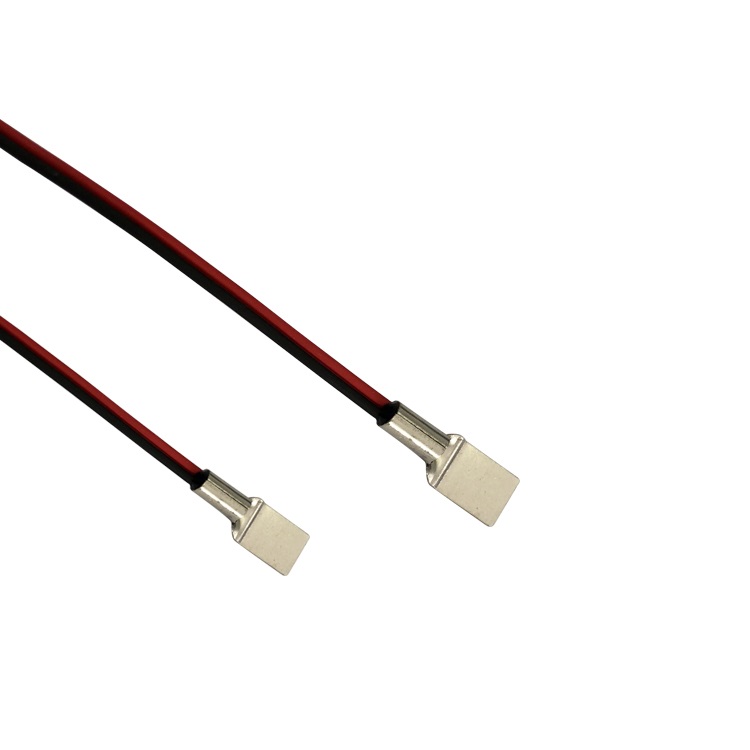

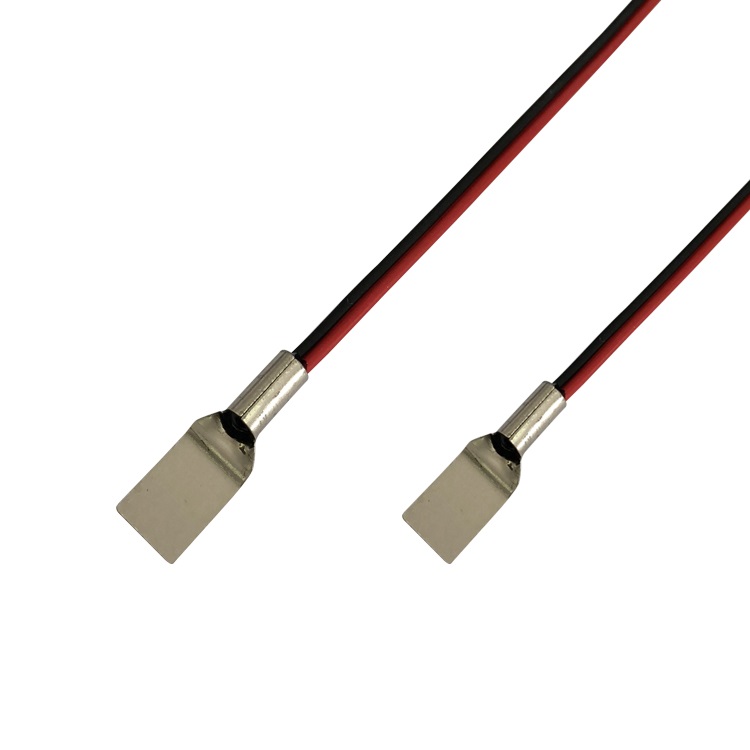

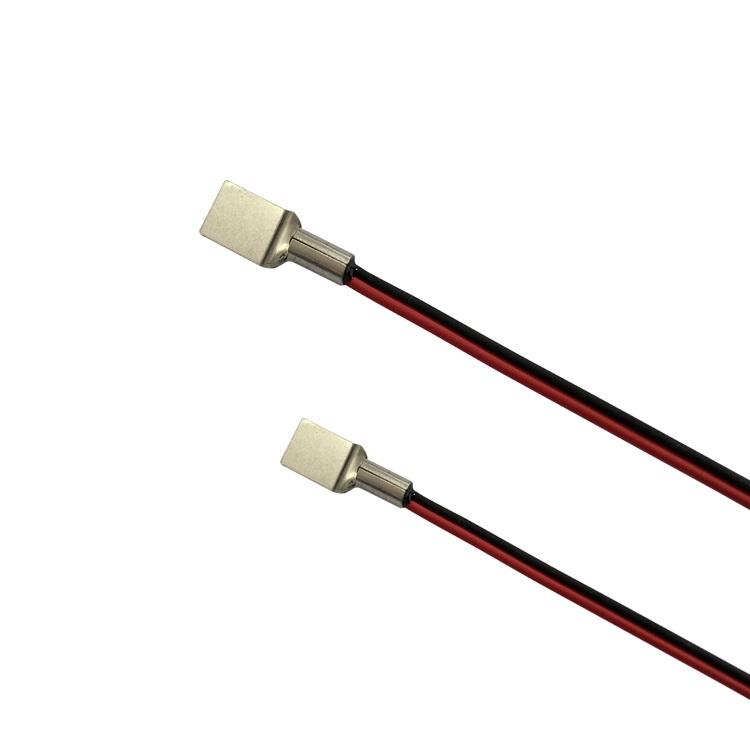

NTC thermistor for automobile battery pack
Guangdong JPET Technology Co., LTD is a professional R & D and manufacturer of NTC temperature sensor, NTC thermistor and temperature switch.
JPTF series temperature sensor is made by welding high sensitivity and high reliability NTC thermosensitive resistor chip with PVC wire,
With insulation, heat conduction, waterproof material encapsulated into the desired shape,which is convenient for installation and remote
temperature measurement.Adopted double-layer sealing process with good insulation sealing, anti-mechanical impact, anti-bending ability and high reliability.
With the conventional parameters of 5K, 10K, 50K and 100K and B values including 3435, 3470 and 3950.The temperature sensor product has the characteristics of
stable transmission signal, high temperature resistance, high precision and high range,can be customized according to various parameters and sizes.
Features:
1.NTC thermistor temperature sensor
2.Wide range resistance:1kΩ to 500kΩ
3.High accuracy, good consistency and interchangeable resistance both value and B value
4.Good insulation, high reliability, quick response
5.Adopted double-layer sealing process with good insulation sealing, anti-mechanical impact, anti-bending ability and high reliability.
6.Can work stably for a long time (annual resistance drift rate ≤1‰)
7.Can be packaged according to the installation conditions
8.Operating temperature range :-40~180℃
Applications:
1.Automobile, electric vehicle, new energy vehicle (battery, electric control, motor, charging gun)
2.Combustion machine, dishwasher, disinfecting machine, washing machine, automobile temperature control system,
medical equipment, new temperature measurement, communication equipment
3.Printer, copier, motor, computer, optical communication module temperature control, industrial automation equipment,
temperature control instrument microwave oven
4.Temperature measurement in granary, refrigerator, air conditioner, electric water heater, freezer, cell phone battery,
charger, induction cooker, toaster, disinfection cabinet
5.Electric oven, fire alarm, food storage, ocean, deep well, glacier temperature measurement, military industry and other fields.
Dimensions:
Product Characteristic Parameters:
1.Thermal reaction time: ≤16 seconds in water bath
Ordering instructions：
Please inform the following parameters when ordering NTC temperature sensor:RT table of conventional resistance values：
