Specialized NTC temperature sensor for oven

Guangdong JPET Technology Co., LTD is a professional R & D and manufacturer of NTC temperature sensor, NTC thermistor and temperature switch.

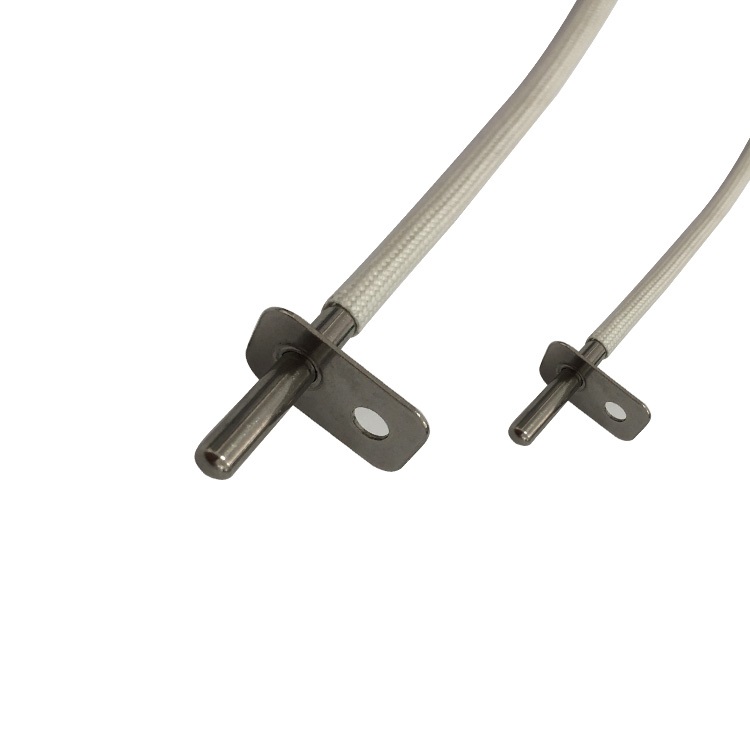

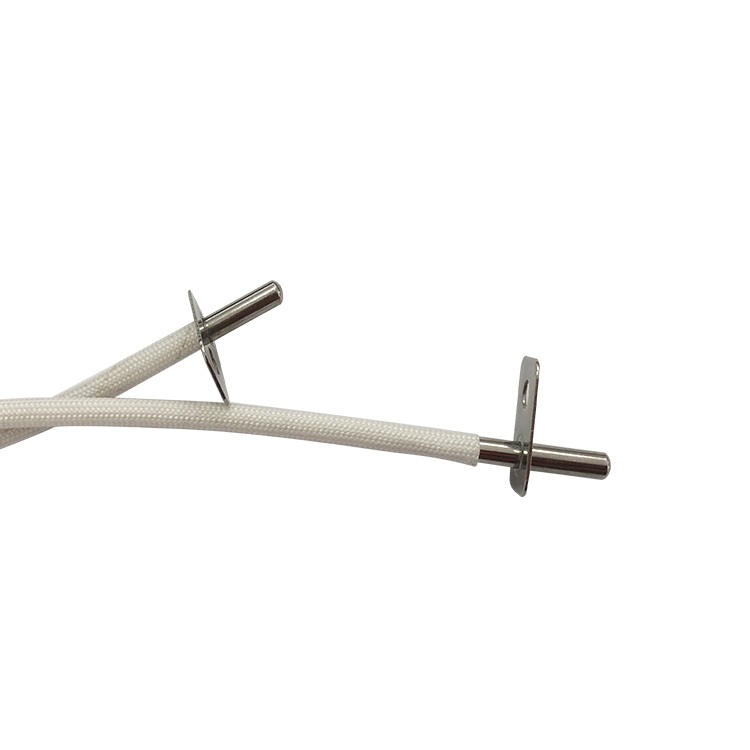

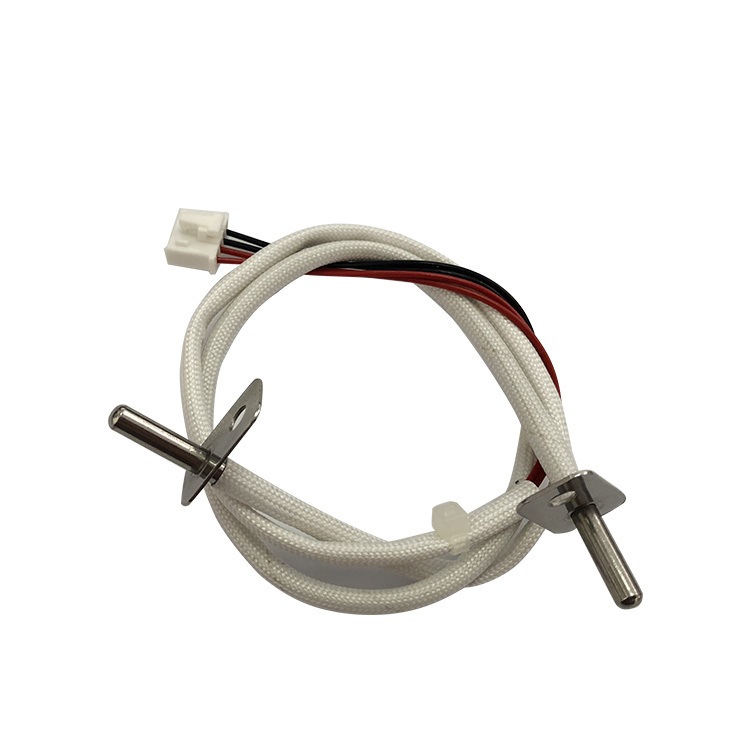

JPTF series stainless steel flange piece temperature sensor is high sensitivity, high reliable NTC thermistor chips with lead wire,
encapsulated with insulation, thermal conductivity, waterproof material into required shape, easy to install and remote measurement
and control temperature. Can be encapsulated according to installation conditions,customized parameters and dimensions is welcome.


Features:
1.High temperature resistance
2.High sensitivity and quick reaction
3.Compact structure, simple installation, good water resistance
4.Wide temperature range, good stability and high reliability
5.Can provide different resistance, B value, strong interchangeability and high precision products.


Applications:
1.Oven
2.Water heater
3.Water dispenser, dishwasher, disinfection cabinet
4.Heater, washer, dryer


Parameters Characteristics：
1. Thermal reaction time： ≤16 seconeds  in water bath
2. Dissipation factor: about 2.6mW/℃ in standing air
3. Withstand voltage test：AC 2100V 2mA 1 second
4. Insulation test： ≥100MΩ
5. Rated power：≤10mW
6. Operating temperture range: -40℃～250℃



Dimensions:



Ordering Instructions：
Please inform the following parameters when ordering NTC temperature sensor:
1、Resistance value requirements (can be selected according to the above table)
2、B value requirements (can be selected according to the above table)
3、Working environment (whether waterproof, moisture-proof, cold and other requirements )
4. Application: different usgae has different temperature resistant wire and different resistance value
5. Operating temperature range
6. Accuracy requirement (1%-5% optional)
7. Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8. Customized shell dimensions is welcome
9. Customized wire rod and length is welcome
10. If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are a professional manufacturer of NTC thermistors and temperature sensors. The products involve
many parameters and specifications, please confirm before place an order.

R-t table of conventional resistance values:
